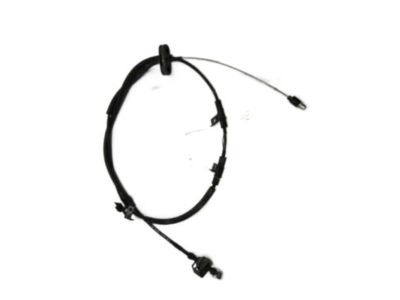

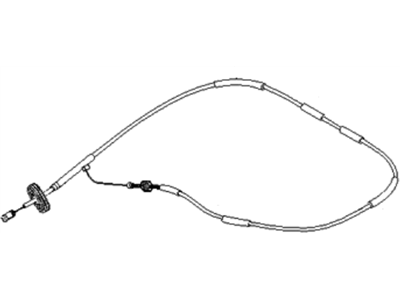

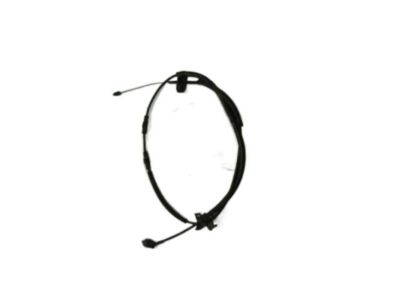

Kia 327901F400 Cable Assembly-Accelerator

You can Select Your Vehicle to check if 327901F400 fits your vehicle.

Remove the engine cover, back off the adjustment nut and disengage the cable from the cable bracket on the intake manifold, slide the cable end plug out of its slot in the throttle cam, trace the cable back to the firewall and detach it from any clips or brackets, push the upper end of the accelerator pedal forward and disengage the cable from the pedal arm, carefully pry the accelerator cable grommet out of the firewall, pull the cable out from the engine compartment side, install the cable, adjust it, fully depress the accelerator pedal and verify that the throttle is fully opened, measure the cable freeplay and compare it to the cable freeplay, if the throttle doesn't fully open or if the freeplay is incorrect, loosen the locknut and adjust the cable, tighten the locknut and recheck the adjustment, and make sure the throttle closes fully when the pedal is released.
