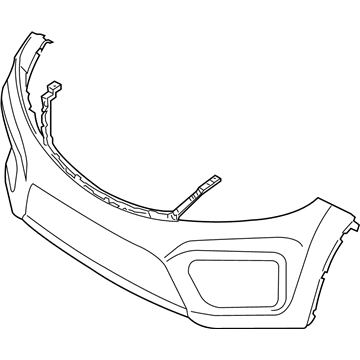

Kia 865111U200 Front Bumper Upper Cover

You can Select Your Vehicle to check if 865111U200 fits your vehicle.

Before taking off the front bumper of the 2009 and earlier models, you should unplug the cable of the negative terminal of the battery, set the parking brake, lift the car and support it with jackstands. Pull the wires from the fog lights if exist and then retrieved headlight housing from right or left side. When the headlight housing is now out of the way, identify the other and additional bumper cover's hidden fasteners such as the corner retaining nut and fasteners from the two sides as well. If necessary, the procedure continues with the taking off of the bumper guard lower fasteners, followed by the removal of the two access hole covers as well as the nuts located behind each of them and, finally, the separation of the bumper guard from the bumper. Then, take out the bumper seal board plastic type push pins and the seal board; next, unscrew the upper trim fasteners of the bumper cover; and also, unscrew the plastic screws found at the top of the bumper cover; now, take out the screws near the lower edge of the bumper cover; and finally, take out the middle screws of the bumper cover. Starting from the 2011 and later model year you have to take out the fasteners which is attached at the bottom end of the bumper cover, at the top ends of the radiator grille, at the rearmost vertical border of the bumper cover and the fasteners that are used to hold the upper rear edges of the bumper cover to the fender as well as you have to release the clips used in fixing the upper rear edges of the bumper Proceed and visually inspect the car using a flashlight to confirm that all the clips on the bumper cover have been disconnected, then with support remove the front bumper cover. Kickstart at the rear tail light housing, then open the lift gate and raise the weather strip, then unscrew the upper bumper cover screws where situated at the top of the bumper cover. Lift the vehicle and ensure it is properly supported on jackstands and then loosen all the lower screws that attached the bumper cover to the frame and to the wheel well liners, and the screws on each side which attached the bumper cover to the under part of the wheel wells. Flip the car and turn off the breaker while inspecting with a flashlight to ascertain that everything is disconnected from the bumper cover and then remove the bumper cover. Removal is the opposite of installation.
