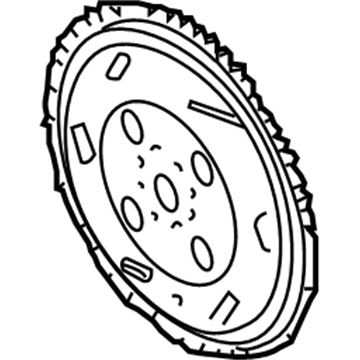

Kia 2320039802 Flywheel Assembly

You can Select Your Vehicle to check if 2320039802 fits your vehicle.

Your last step to in the removal of driveplate will be to unplug the cable that is connected to the negative terminal of the battery and finally, the transmission/transaxle must be removed. It is recommended to place a centre punch or paint the crankshaft flange and the Drveplate so that it can easily relocate in the right position every time it is removed. Subsequently, pray the bolts off that hold drive plate over the crankshaft using a drive plate holding tool or a screwdriver pry-bar combined with the bit of the socket. All spacers which are applied to the engine should be noted and their positions marked when the driveplate is removed. For installation, first check the driveplate for cracks or other damage and then place it on the crankshaft flange putting earlier made marks and bolt holes in mind that some models use a staggered bolt hole pattern. Bolt threads should be coated using non-hardening thread-locking compound, the bolts placed and tightened in a pattern of an X to the needed amount of torque after which the torque is gradually increased in stages before reattaching the transmission/transaxle.

Use a clutch alignment tool to support the disc, then loosen the pressure plate bolts in a criss-cross pattern, relieving all spring force before removing the bolts, pressure plate, and clutch disc.
