How do you remove and install a tie-rod end on Kia Sorento?

Before attempting to remove the tie-rod end, it is advisable to, Loosen the wheel lug nuts, raise the front of the van, and support it on jackstands, block the rear wheels, set the parking brake and finally, remove the front wheel. Third, unlock the tie-rod and gripped with the locking pliers or with the wrench and free the jam nut so that one can align the tie-rod end for positioning with the reference marks on the tie-rod and transfer these marks to the new tie-rod end such that it would have threaded on the same turn as the old one. Fitted to the spindle is the nut on the tie-rod end stud, need to remove it by unscrewing it also remove the cotter pin then using puller device pulling the tie-rod away from steering knuckle arm. Remove the nut and flat washer of the tie-rod end from the tie-rod. For installation, thread the tie-rod end on to the marked position and then, slot the tie-rod stud into the steering knuckle arm before final tightening of the jam nut. On the stud, place the castle nut and torque it to the right specification while replacing the cotter pin to a new one. Last, put the wheel and the lug nuts, lower the car and then tighten the lug nuts according to the torque specifications and then it is advisable to have it aligned by the dealer service department or by an alignment shop.

Genuine Kia Sorento Tie Rod End

Steering Rod End

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Tie Rod Ends found

View related parts

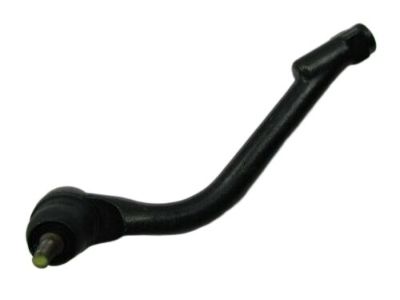

Kia Sorento End Assembly-Tie Rod,RH
Part Number: 56825C1090
$59.40 MSRP: $84.25
You Save: $24.85 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sorento | 2.0L - Theta 2, 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod,LH
Part Number: 56820C1000
$62.80 MSRP: $89.09
You Save: $26.29 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sorento | 2.0L - Theta 2, 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod RH
Part Number: 568202B900
$64.68 MSRP: $91.75
You Save: $27.07 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,RH; Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2009-2012 Kia Sorento | 2.4L - Theta 2, 3.5L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod LH
Part Number: 568202B000
$64.68 MSRP: $91.75
You Save: $27.07 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,LH; Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2009-2012 Kia Sorento | 2.4L - Theta 2, 3.5L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod RH
Part Number: 568204Z050
$58.13 MSRP: $82.45
You Save: $24.32 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,RH; Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2013-2014 Kia Sorento | 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod LH
Part Number: 568204Z000
$63.52 MSRP: $90.10
You Save: $26.58 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,LH; Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2013-2014 Kia Sorento | 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 5P, Wagon - 5Door 7P
View related parts
Kia Sorento Tie Rod End Assembly,LH
Part Number: 568203E000
$46.53 MSRP: $66.00
You Save: $19.47 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,LH; Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2003-2008 Kia Sorento | High Grade, Middle Grade | 3.3L - Lambda, 3.5L, 3.8L, 3.8L - Lambda | 5 Door Wagon, Wagon - 5Door 5P
View related parts
Kia Sorento Tie Rod End Assembly,RH
Part Number: 568203E900
$47.00 MSRP: $66.67
You Save: $19.67 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Assembly-Tie Rod,RH; Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2003-2008 Kia Sorento | High Grade, Middle Grade | 3.3L - Lambda, 3.5L, 3.8L, 3.8L - Lambda | 5 Door Wagon, Wagon - 5Door 5P
View related parts
Kia Sorento End Assembly-Tie Rod,LH
Part Number: 56820P2000
$46.78 MSRP: $66.35
You Save: $19.57 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2021-2023 Kia Sorento | 1.6L-Gamma-II, 2.5L-THETA-III | Wagon - 5Door 6P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod,RH
Part Number: 56825P2000
$46.78 MSRP: $66.35
You Save: $19.57 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2021-2023 Kia Sorento | 1.6L-Gamma-II, 2.5L-THETA-III | Wagon - 5Door 6P, Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod,LH
Part Number: 56820C1700
$54.37 MSRP: $77.12
You Save: $22.75 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2020 Kia Sorento | 2.0L - R, 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 7P
View related parts
Kia Sorento End Assembly-Tie Rod,RH
Part Number: 56825C1790
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2020 Kia Sorento | 2.0L - R, 2.4L - Theta 2, 3.3L - Lambda 2 | Wagon - 5Door 7P

Kia Sorento Tie Rod End

If you're in search of top-notch, reasonably priced OEM Kia Sorento Tie Rod End, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sorento Tie Rod End, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sorento Tie Rod End Parts Questions & Experts Answers

End Assembly-Tie Rod RH
568202B900
Q: How do you remove and install a tie-rod end on Kia Sorento?
A: Before attempting to remove the tie-rod end, it is advisable to, Loosen the wheel lug nuts, raise the front of the van, and support it on jackstands, block the rear wheels, set the parking brake and finally, remove the front wheel. Third, unlock the tie-rod and gripped with the locking pliers or with the wrench and free the jam nut so that one can align the tie-rod end for positioning with the reference marks on the tie-rod and transfer these marks to the new tie-rod end such that it would have threaded on the same turn as the old one. Fitted to the spindle is the nut on the tie-rod end stud, need to remove it by unscrewing it also remove the cotter pin then using puller device pulling the tie-rod away from Steering Knuckle arm. Remove the nut and flat washer of the tie-rod end from the tie-rod. For installation, thread the tie-rod end on to the marked position and then, slot the tie-rod stud into the steering knuckle arm before final tightening of the jam nut. On the stud, place the castle nut and torque it to the right specification while replacing the cotter pin to a new one. Last, put the wheel and the lug nuts, lower the car and then tighten the lug nuts according to the torque specifications and then it is advisable to have it aligned by the dealer service department or by an alignment shop.
