How do you remove and install the steering gear in a Kia Sedona?

Park the vehicle with the front wheels pointing straight ahead, loosen the front wheel lug nuts, then raise the front and support it securely on jackstands. Apply the parking brake and remove the wheels along with the under-vehicle splash shield. Place a drain pan under the Rack And Pinion, detach the power steering pressure and return lines, and cap the ends to prevent excessive fluid loss and contamination, using a flare-nut wrench to avoid damaging the fittings. Mark the relationship of the intermediate shaft to the steering shaft U-joint and remove the pinch bolt. Separate the tie-rod ends from the steering knuckle arms. For 2005 and earlier models, remove the Rack And Pinion mounting fasteners, separate the intermediate shaft U-joint from the Rack And Pinion input shaft, and maneuver the Rack And Pinion down and out from the right side of the vehicle, checking the Rack And Pinion bushings for excessive wear or deterioration and replacing them if necessary. For 2006 and later models, remove the subframe after disconnecting the power steering line-to-subframe retainers, then detach the Rack And Pinion from the subframe. Installation is the reverse of removal, ensuring to align the marks on the intermediate shaft U-joint and the Rack And Pinion input shaft, center the pinion if installing a new Rack And Pinion, tighten all fasteners to the specified torque, connect the power steering pressure and return hoses, fill the power steering pump reservoir with the recommended fluid, lower the vehicle, bleed the steering system, and have the alignment checked by a dealer service department or an alignment shop.

Genuine Kia Sedona Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

18 Rack And Pinions found

View related parts

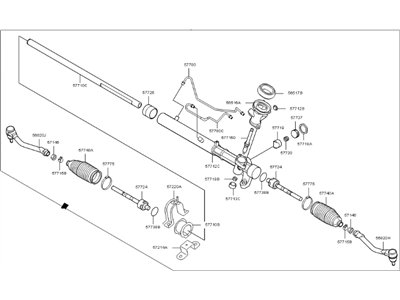

Kia Sedona Gear & Linkage Assembly
Part Number: 57700A9501
$2403.11 MSRP: $3528.80
You Save: $1125.69 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Mdps; Gear Assembly, Rack, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts

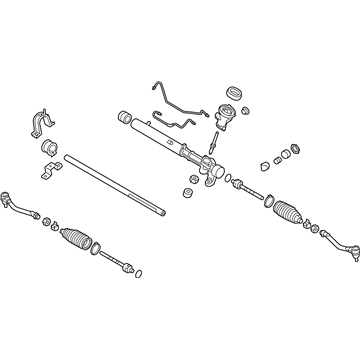

Kia Sedona Gear & Linkage Assembly
Part Number: 57700A9500
$207.08 MSRP: $287.62
You Save: $80.54 (28%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Mdps
- Replaced by: 56396A9500
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 577004D800
$655.33 MSRP: $962.30
You Save: $306.97 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Power Steering; Gear Assembly, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 57700A9100
$519.16 MSRP: $762.35
You Save: $243.19 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Power Steering; Gear Assembly, Rack, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 577004D805
$652.86 MSRP: $958.68
You Save: $305.82 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Power Steering; Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | 3.5L - Lambda 2, 3.8L - Lambda | Wagon Long - 7P, Wagon Short - 7P
View related parts
Kia Sedona Pac K
Part Number: 57700A9200
$707.77 MSRP: $1039.32
You Save: $331.55 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rack Assembly-Power Steering Gear Box
Part Number: 57710A9000
$160.15 MSRP: $229.12
You Save: $68.97 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack, Short Rack
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2018 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Gear Assembly-Steering
Part Number: 0K52Y32110
$611.75 MSRP: $875.19
You Save: $263.44 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Gear Assembly-Steering
Part Number: 0K52Y32110C
$611.75 MSRP: $875.19
You Save: $263.44 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 0K52Y32110D
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 57700A9250
$633.19 MSRP: $929.80
You Save: $296.61 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Rack, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 577004D400
$697.31 MSRP: $1023.95
You Save: $326.64 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear & Linkage Assembly-Power Steering; Gear Assembly, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Gear & Linkage Assembly
Part Number: 57700A9550
$2670.88 MSRP: $3922.00
You Save: $1251.12 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Rack, Steering Gear
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2019-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Rack Assembly-Power Steering Gear Box
Part Number: 577104D400
$128.67 MSRP: $184.09
You Save: $55.42 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Short - 7P, Wagon Short 7
View related parts
Kia Sedona Rack Assembly-Power Steering Gear Box
Part Number: 577104D000
$150.70 MSRP: $215.60
You Save: $64.90 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2006-2014 Kia Sedona | High Grade, Middle Grade | 3.5L - Lambda 2, 3.8L, 3.8L - Lambda | Wagon Long - 7P, Wagon Long 7, Wagon Short - 7P
View related parts
Kia Sedona Rack Assembly-Power Steering Gear Box
Part Number: 57710A9200
$157.09 MSRP: $224.74
You Save: $67.65 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rack, Short Rack
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P
View related parts
Kia Sedona Gear Assembly-Steering
Part Number: 0K52Y32110A
$611.75 MSRP: $875.19
You Save: $263.44 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 0K52Y32110D
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Gear Assembly-Steering
Part Number: 0K52Y32110D
$596.00 MSRP: $875.19
You Save: $279.19 (32%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Gear Assembly, Steering Gear
- Replaces: 0K52Y32110C, 0K52Y32110A
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2001-2005 Kia Sedona | Low Grade, Middle Grade | 3.5L | Wagon Short 7
View related parts
Kia Sedona Tube Assembly-Feed RH
Part Number: 57752A9000
$30.48 MSRP: $43.24
You Save: $12.76 (30%)
Product Specifications
- Other Name: Pressure Tube
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Kia's factory warranty.
Fits the following Vehicles:
- 2015-2021 Kia Sedona | 3.3L - Lambda 2 | Wagon Long - 7P, Wagon Long - 8P

Kia Sedona Rack And Pinion

If you're in search of top-notch, reasonably priced OEM Kia Sedona Rack And Pinion, then you've found the perfect spot. Our website boasts an extensive inventory of Kia Sedona Rack And Pinion, all priced at the market's premier price. Rest assured, every genuine part we offer comes with a warranty straight from the manufacturer.

Kia Sedona Rack And Pinion Parts Questions & Experts Answers

Rack Assembly-Power Steering Gear Box
577104D400
Q: How do you remove and install the steering gear in a Kia Sedona?
A: Park the vehicle with the front wheels pointing straight ahead, loosen the front wheel lug nuts, then raise the front and support it securely on jackstands. Apply the parking brake and remove the wheels along with the under-vehicle splash shield. Place a drain pan under the Rack And Pinion, detach the power steering pressure and return lines, and cap the ends to prevent excessive fluid loss and contamination, using a flare-nut wrench to avoid damaging the fittings. Mark the relationship of the intermediate shaft to the steering shaft U-joint and remove the pinch bolt. Separate the tie-rod ends from the Steering Knuckle arms. For 2005 and earlier models, remove the Rack And Pinion mounting fasteners, separate the intermediate shaft U-joint from the Rack And Pinion input shaft, and maneuver the Rack And Pinion down and out from the right side of the vehicle, checking the Rack And Pinion bushings for excessive wear or deterioration and replacing them if necessary. For 2006 and later models, remove the subframe after disconnecting the power steering line-to-subframe retainers, then detach the Rack And Pinion from the subframe. Installation is the reverse of removal, ensuring to align the marks on the intermediate shaft U-joint and the Rack And Pinion input shaft, center the pinion if installing a new Rack And Pinion, tighten all fasteners to the specified torque, connect the power steering pressure and return hoses, fill the power steering pump reservoir with the recommended fluid, lower the vehicle, bleed the steering system, and have the alignment checked by a dealer service department or an alignment shop.
