Propeller Shaft fit your 2002 Kia Sportage

5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Propeller Shaft (01/01)

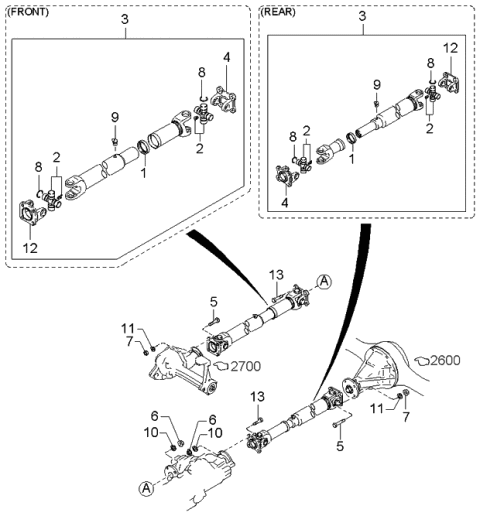

    2002 Kia Sportage Propeller Shaft Diagram 1
  • 2.Propeller Shaft (01/01)> [2 Door 5 Canvas Top]> [4 Speed AT 2WD]

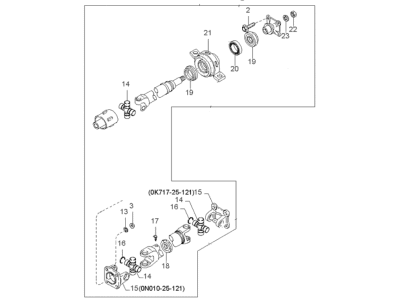

    2002 Kia Sportage Propeller Shaft Diagram 2
  • 3.Propeller Shaft (01/01)> [2 Door 5 Canvas Top]> [5 Speed MT 2WD]

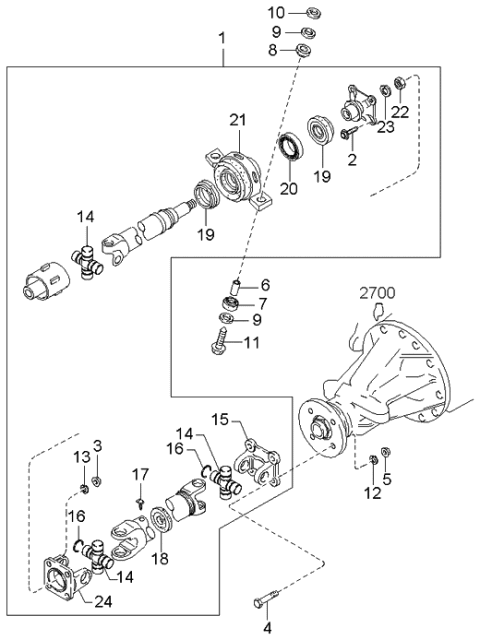

    2002 Kia Sportage Propeller Shaft Diagram 3
  • 4.Propeller Shaft (01/01)> [5 Door Wagon]> [4 Speed AT 2WD]

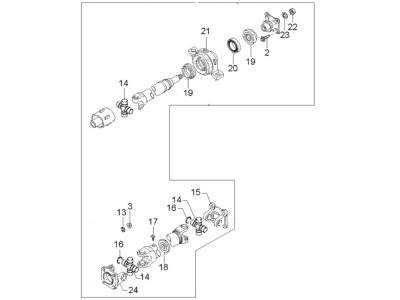

    2002 Kia Sportage Propeller Shaft Diagram 4
  • 5.Propeller Shaft (01/01)> [5 Door Wagon]> [5 Speed MT 2WD]

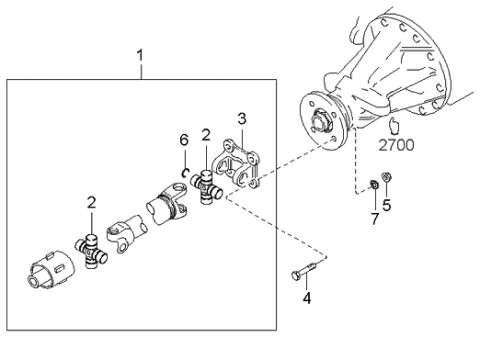

    2002 Kia Sportage Propeller Shaft Diagram 5
Sort by:
Part Description
Part Code
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 20
    0K95A25155
    Bearing
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: 43426
    $59.15 $43.30
    1
    Add To Cart
  • 4
    0145625123
    Bolt
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: 49129C
  • 5
    0145625123
    Bolt
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49129C
  • 2
    0P01125123
    Bolt
    • SELECTIVE USE
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: 49129C
    $2.92 $2.15
    1
    Add To Cart
  • 13
    0P01125123
    Bolt
    • SELECTIVE USE
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49129C
    $2.92 $2.15
    1
    Add To Cart
  • 11 Kia K997961045
    K997961045
    Bolt
    • ATM
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: K979DC
    • Replaced By: K997961045B
  • 6
    0K01225124
    Nut
    • 97MY
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 1310WB
    $6.85 $5.06
    1
    Add To Cart
  • 3
    0136825124
    Nut
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: 22457
    • Replaced By: 0K01225124
    $6.85 $5.06
    1
    Add To Cart
  • 5
    0K01225125
    Nut
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: 52759
    $2.34 $1.72
    1
    Add To Cart
  • 7
    0K01225125
    Nut
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 52759
    $2.34 $1.72
    1
    Add To Cart
  • Ring-Snap
    16
    0175725171
    Ring-Snap
    • T=1.22mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $6.10 $4.50
    1
    Add To Cart
  • 16
    0175725172
    Ring-Snap
    • T=1.24mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.79 $4.27
    1
    Add To Cart
  • 16
    0175725173
    Ring-Snap
    • T=1.26mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.47 $4.03
    1
    Add To Cart
  • 16
    0175725174
    Ring-Snap
    • T=1.28mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 16
    0175725175
    Ring-Snap
    • T=1.30mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 16
    0175725176
    Ring-Snap
    • T=1.32mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 16
    0175725177
    Ring-Snap
    • T=1.34mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 16
    0175725178
    Ring-Snap
    • T=1.36mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 16
    0175725179
    Ring-Snap
    • T=1.38mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • Ring-Snap
    6
    0175725171
    Ring-Snap
    • T=1.22mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $6.10 $4.50
    1
    Add To Cart
  • 6
    0175725172
    Ring-Snap
    • T=1.24mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.79 $4.27
    1
    Add To Cart
  • 6
    0175725173
    Ring-Snap
    • T=1.26mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.47 $4.03
    1
    Add To Cart
  • 6
    0175725174
    Ring-Snap
    • T=1.28mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 6
    0175725175
    Ring-Snap
    • T=1.30mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 6
    0175725176
    Ring-Snap
    • T=1.32mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 6
    0175725177
    Ring-Snap
    • T=1.34mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 6
    0175725178
    Ring-Snap
    • T=1.36mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 6
    0175725179
    Ring-Snap
    • T=1.38mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • Ring-Snap
    8
    0175725171
    Ring-Snap
    • T=1.22mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $6.10 $4.50
    1
    Add To Cart
  • 8
    0175725172
    Ring-Snap
    • T=1.24mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.79 $4.27
    1
    Add To Cart
  • 8
    0175725173
    Ring-Snap
    • T=1.26mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $5.47 $4.03
    1
    Add To Cart
  • 8
    0175725174
    Ring-Snap
    • T=1.28mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 8
    0175725175
    Ring-Snap
    • T=1.30mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 8
    0175725176
    Ring-Snap
    • T=1.32mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.40 $2.51
    1
    Add To Cart
  • 8
    0175725177
    Ring-Snap
    • T=1.34mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 8
    0175725178
    Ring-Snap
    • T=1.36mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 8
    0175725179
    Ring-Snap
    • T=1.38mm
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: 49172
    $3.22 $2.37
    1
    Add To Cart
  • 1 Kia 0072725026
    0072725026
    Seal-Dust
    • 97MY
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: 33813A
    $13.49 $9.95
    1
    Add To Cart
  • 19 Kia 0K02F25151
    0K02F25151
    Seal-Dust
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: 43117
    $20.87 $15.40
    1
    Add To Cart
  • Shaft Assy-Propeller
    1
    0K02E25100B
    Shaft Assy-Propeller
    • Fitting Vehicle Options: [2 Door 5 Canvas Top]> [4 Speed AT 2WD], [2 Door 5 Canvas Top]> [5 Speed MT 2WD]
    • Part Name Code: 49100E
    $299.35 $209.25
    1
    Add To Cart
  • 1
    0K02F25010C
    Shaft Assy-Propeller
    • Fitting Vehicle Options: [5 Door Wagon]> [5 Speed MT 2WD]
    • Part Name Code: 49100E
    $690.92 $470.51
    1
    Add To Cart
  • 1
    0K02H25010C
    Shaft Assy-Propeller
    • Fitting Vehicle Options: [5 Door Wagon]> [4 Speed AT 2WD]
    • Part Name Code: 49100E
    $703.34 $478.97
    1
    Add To Cart
  • 9
    0818225332
    Spacer
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: 53070
    $4.25 $3.14
  • 6
    0M04225317
    Spacer
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: 53070
    • Replaced By: 0K95A25317
    $6.53 $4.82
    1
    Add To Cart
  • 10 Kia 0M05425333
    0M05425333
    Spacer
    • Require Quantity: 2
    • Package Quantity: 1
    • Part Name Code: 55119B
    $6.18 $4.56
    1
    Add To Cart
  • 12 Kia K999710800
    K999710800
    Washer-Spring
    • MTM
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: K979BF
    • Replaced By: 1360208001
    $0.83 $0.62
    1
    Add To Cart
  • 7 Kia K999710800
    K999710800
    Washer-Spring
    • MTM
    • Require Quantity: 4
    • Package Quantity: 1
    • Part Name Code: K979BF
    • Replaced By: 1360208001
    $0.83 $0.62
    1
    Add To Cart
  • 11 Kia K999710800
    K999710800
    Washer-Spring
    • MTM
    • Require Quantity: 8
    • Package Quantity: 1
    • Part Name Code: K979BF
    • Replaced By: 1360208001
    $0.83 $0.62
    1
    Add To Cart
  • 13
    K999711000
    Washer-Spring
    • D/TIRE
    • Require Quantity: 4
    • Package Quantity: 10
    • Part Name Code: K9997A
    • Replaced By: QW435176A350
    $7.72 $5.69
    10
    Add To Cart
  • 10
    K999711000
    Washer-Spring
    • D/TIRE
    • Require Quantity: 8
    • Package Quantity: 10
    • Part Name Code: K9997A
    • Replaced By: QW435176A350
    $7.72 $5.69
    10
    Add To Cart
Genuine Kia Parts, the Right Choice
KiaPartsNow.com offers the wholesale prices for genuine 2002 Kia Sportage parts. Parts like Propeller Shaft are shipped directly from authorized Kia dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 2.0L. Body: 2 Door 5 Canvas Top, 5 Door Wagon.
