Diagram (1 of 1): Information System (01/01)

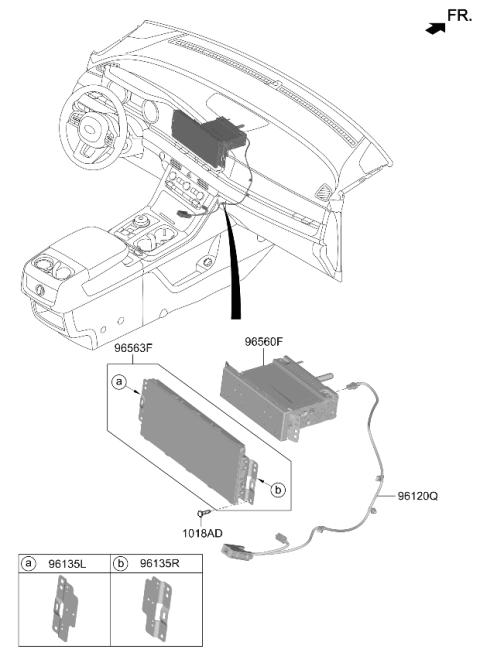

2022 Kia Carnival Information System Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

96135L
96175R0200
Bracket-Monitor, LH
- Location: Driver Side
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
  SURROUND VIEW CAMERA
$15.09 $10.72
1
Add To Cart

96135R
96176R0200
Bracket-Monitor, RH
- Location: Passenger Side
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
  SURROUND VIEW CAMERA
$16.60 $11.80
1
Add To Cart

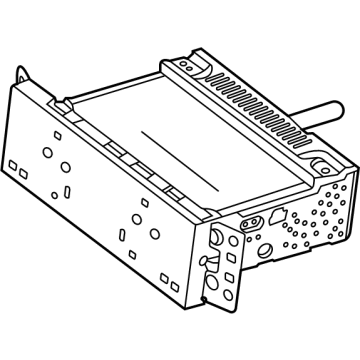

Head Unit Assy-Avn
96560F
96560R0710WK
Head Unit Assy-Avn
Fit Note: AVN STD
AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
CAMERA/PTT TYPE
CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
EXTERNAL AMP - AMP
FREQUENCY VIBRATION - AM10K/FM200K
MODEL YEAR PACKAGE - 22MY
SURROUND VIEW CAMERA
Production Date: from 01/2021
$5706.67 $3886.24
1
Add To Cart
96560F
96560R0730WK
Head Unit Assy-Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  SURROUND VIEW CAMERA
- Production Date: from 01/2021
$5820.80 $3963.96
1
Add To Cart
96560F
96560R0740WK
Head Unit Assy-Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  REAR VIEW CAMERA
- Production Date: from 01/2021
$5706.67 $3886.24
1
Add To Cart
96560F
96560R0760WK
Head Unit Assy-Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 23MY
  SURROUND VIEW CAMERA
- Production Date: from 01/2021
$5706.67 $3886.24
1
Add To Cart
96560F
96560R0780WK
Head Unit Assy-Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 23MY
  SURROUND VIEW CAMERA
- Production Date: from 01/2021
96560F
96560R0790WK
Head Unit Assy-Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
- Production Date: from 01/2021
$5706.67 $3886.24
1
Add To Cart

96120Q
96120R0100
Jack Assy-USB
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
  SURROUND VIEW CAMERA
$84.00 $59.22
1
Add To Cart

96563F
96525R0100WK
Monitor Assy-Front Avn
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER FACIA PNL
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
  SURROUND VIEW CAMERA
$4193.02 $2855.44
1
Add To Cart

1018AD
1018805163
Screw-Tapping
- Fit Note: AVN STD
  AVN STD(RADIO+MEDIA+NAVI) - 12.3 EXT LCD+SDARS+HD+TMS
  CAMERA/PTT TYPE
  CLUSTER TYPE - INTEGRATED DISPLAY 12.3"TFT LCD(CLU)+12.3"TFT LCD
  EXTERNAL AMP - AMP
  FREQUENCY VIBRATION - AM10K/FM200K
  MODEL YEAR PACKAGE - 22MY
  MODEL YEAR PACKAGE - 23MY
  REAR VIEW CAMERA
  SURROUND VIEW CAMERA
- Require Quantity: 8
- Package Quantity: 1
- Replaced By: 1245105163
$5.08 $3.75
1
Add To Cart
