Diagram (1 of 1): Transaxle Case-Manual (01/01)

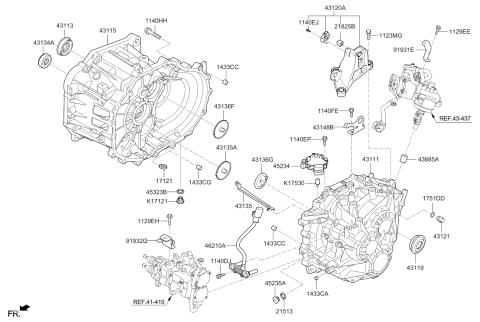

2019 Kia Optima Transaxle Case-Manual Diagram

Enlarge Diagram

Sort by:

Part Description

Part Code

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1123MG
1123412406P
Bolt
- Require Quantity: 4
- Package Quantity: 1
$4.38 $3.23
1
Add To Cart

1129EE

1129306166B
Bolt
$0.87 $0.62
10
Add To Cart

1129EH
1129308166B
Bolt
$0.73 $0.54
1
Add To Cart

1140EJ
1140306126K
Bolt
- Require Quantity: 2
- Package Quantity: 5
$0.25 $0.18
5
Add To Cart

1140EP
1140306226K
Bolt
- Require Quantity: 2
- Package Quantity: 10
- Replaced By: 2151635710
$1.32 $0.97
10
Add To Cart

1140FE
1140308186P
Bolt
- Require Quantity: 2
- Package Quantity: 1
$2.47 $1.82
1
Add To Cart

1140HH
1140410456P
Bolt
- Require Quantity: 19
- Package Quantity: 1
$3.00 $2.21
1
Add To Cart

45235A
452354C000
Bolt
$8.48 $6.26
1
Add To Cart

1140DJ
1140306166K
Bolt-Flange
- Require Quantity: 2
- Package Quantity: 10
$2.62 $1.86
10
Add To Cart

43120A
431202D000
Bracket-Trnasmission Support
$142.47 $104.29
1
Add To Cart

91931E
91931D3060
Bracket-Wiring MTG
$10.17 $7.50
1
Add To Cart

91932Q
91931A5090
Bracket-Wiring Mounting
$11.25 $8.30
1
Add To Cart

K17530
0K9F417530
Breather Assy
$10.82 $7.98
1
Add To Cart

1433CA
1433108090
Bush
- Require Quantity: 3
- Package Quantity: 1
$3.27 $2.32
1
Add To Cart

1433CC
1433110160
Bush
- Require Quantity: 2
- Package Quantity: 1
$0.83 $0.62
1
Add To Cart

1433CG
1433110090
Bush
- Require Quantity: 2
- Package Quantity: 1
$5.67 $4.18
1
Add To Cart

43885A
438852A000
Bushing
$10.60 $7.82
1
Add To Cart

43111
431112D000
Case-Manual Transmission
$462.17 $328.60
1
Add To Cart

1751DD

1751116000
Gasket
$1.47 $1.04
1
Add To Cart

45323B

4532339000
Gasket-Magnet Plug
$1.00 $0.71
10
Add To Cart

21513

2151311000
Gasket-Oil Plug
$1.33 $0.95
5
Add To Cart

43135
431352D000
Guide-Oil
$6.72 $4.96
1
Add To Cart

43136G
431362C000
Guide-Oil, Input
$6.37 $4.70
1
Add To Cart

43135A
431362A010
Guide-Oil, Output 1
$6.55 $4.83
1
Add To Cart

43136F
431362A020
Guide-Oil, Output 2
$6.55 $4.83
1
Add To Cart

43148B
431482D000
Hanger-Transmission
$10.44 $7.70
1
Add To Cart

43115
431152D000
Housing-Clutch
$716.14 $500.58
1
Add To Cart

17121
0K21117121
Magnet
$6.10 $4.50
1
Add To Cart

21825B
431713B000
Nut
- Require Quantity: 2
- Package Quantity: 1
$6.03 $4.45
1
Add To Cart

43121
4312111000
Plug-Magnet
$5.22 $3.85
1
Add To Cart

K17121
0081017121
Plug-Magnet
- COACH
$10.48 $7.45
1
Add To Cart

43113
4311939050
Seal-Oil
- Replaced By: 4311939070
$12.37 $9.13
1
Add To Cart

43119
4311939060
Seal-Oil
- Replaced By: 4311939080
$12.37 $9.13
1
Add To Cart

43134A
431342A010
Seal-Oil
$8.84 $6.52
1
Add To Cart

46210A
426002D010
Sensor Assy-Speed
$162.47 $114.54
1
Add To Cart

45234
427002D000
Switch-Inhibitor
- Replaced By: 427002D010
$98.85 $72.36
1
Add To Cart

Genuine Kia Parts, the Right Choice

KiaPartsNow.com offers the wholesale prices for genuine 2019 Kia Optima parts. Parts like Transaxle Case-Manual are shipped directly from authorized Kia dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 1.6L - GAMMA, 2.0L - Theta 2, 2.4L - Theta 2. Body: Sedan - 4Door 5P.
